Facility to apply for multiple items against multiple advertisement introduced. For details Click here || For any system/application related issues, please send the details of the issue to mail id: ofb.support@in.experis.com with a copy to the OFB mail id : ofbqcvrcell.ofb@ofb.gov.in

Items open for Registration

Search

Reset

Advertisement No.

Factory

Location

Items

22641

OFD/PV/Component

Ordnance Factory Dehradun

The General Manager,
Dehra Dun
Dehra Dun
Uttaranchal
248008

Name	Code	Quantity
CELL ERECTOR TO DRG NO MCT 2918 1 Description CELL ERECTOR TO DRG.NO. MCT-2918/1 FOR D/S TELE.5.56MM RIFLE Specification CELL ERECTOR TO DRG.NO. MCT-2918/1 FOR D/S TELE.5.56MM RIFLE Drawing no. MCT-2918/1 Manufacturing Technology Testing / Inspection Facility	74	500 Number
PLATE IDENTIFICATION HINDI TO DRG NO MCT 2183 1 Description PLATE IDENTIFICATION (HINDI)TO DRG NO. ,MCT-2183/1 Specification PLATE IDENTIFICATION (HINDI)TO DRG NO. ,MCT-2183/1 Drawing no. MCT-2183/1 Manufacturing Technology Testing / Inspection Facility	74	5000 Number
PLATE IDENTIFICATION ENG TO DRG NO MCT 2173 1 Description PLATE IDENTIFICATION(ENG) TO DRG NO MCT-2173/1 Specification PLATE IDENTIFICATION(ENG) TO DRG NO MCT-2173/1 Drawing no. MCT-2173/1 Manufacturing Technology Testing / Inspection Facility	74	5000 Number
SPRING TO DRG NO IRDE 2603 29 MCT 1334 2 Description SPRING TO DRG NO.IRDE-2603/29,MCT-1334/2 Specification SPRING TO DRG NO.IRDE-2603/29,MCT-1334/2 Drawing no. IRDE-2603/29,MCT-1334/2 Manufacturing Technology Testing / Inspection Facility	74	5000 Number
SPRING HELICAL COMPRESSION Description SPRING HELICAL COMPRESSION SIZE:0.4X3.2X9X11 MM Specification SPRING HELICAL COMPRESSION SIZE:0.4X3.2X9X11 MM Drawing no. Manufacturing Technology Testing / Inspection Facility	74	500 Number
STAINLESS STEEL HELICOIL INSERTS STD NOTCHED Description STAINLESS STEEL HELICOIL INSERTS STD & NOTCHED FOR M3 X 0.5 X 4.5MM(1.5 D) CODE NO.SD-C3 CN 1.5D OF MAKE NAG FASTMAN Specification STAINLESS STEEL HELICOIL INSERTS STD & NOTCHED FOR M3 X 0.5 X 4.5MM(1.5 D) CODE NO.SD-C3 CN 1.5D OF MAKE NAG FASTMAN Drawing no. Manufacturing Technology Testing / Inspection Facility	17	5000 Number
SCREW GRUB SLOTTED CONICAL END STEEL M2 X4 MM LONG Description SCREW GRUB SLOTTED CONICAL END STEEL 6.6 M2 X4 MM LONG Specification SCREW GRUB SLOTTED CONICAL END STEEL 6.6 M2 X4 MM LONG Drawing no. Manufacturing Technology Testing / Inspection Facility	17	5000 Number
SCREW GRUB SLOTTED HEAD LONG STEEL WITH PHOSPHATE PLATING AS PER IS 2388 CONICAL END Description SCREW GRUB SLOTTED HEAD M2X4.5MM LONG STEEL WITH PHOSPHATE PLATING AS PER IS-2388. CONICAL END. Specification SCREW GRUB SLOTTED HEAD M2X4.5MM LONG STEEL WITH PHOSPHATE PLATING AS PER IS-2388. CONICAL END. Drawing no. Manufacturing Technology Testing / Inspection Facility	17	5000 Number
WASHER B IS 5370 BRASS Description WASHER B 3.2 MM IS:5370 BRASS Specification WASHER B 3.2 MM IS:5370 BRASS Drawing no. Manufacturing Technology Testing / Inspection Facility	17	5000 Number
NUT BRASS HEXAGONAL M3 FOR PLOTTER 81MM MORTAR CASED 101A FINISH DULL BLACK BRONZING Description NUT BRASS HEXAGONAL M3 FOR PLOTTER 81MM MORTAR CASED 101A. FINISH:DULL BLACK BRONZING. Specification NUT BRASS HEXAGONAL M3 FOR PLOTTER 81MM MORTAR CASED 101A. FINISH:DULL BLACK BRONZING. Drawing no. MCT-874-1.jpg Manufacturing Technology Testing / Inspection Facility	17	5000 Number
PLATE IDENTIFICATION ENGLISH FOR TNPA 65 A MCT 2651 1 Description PLATE IDENTIFICATION (ENGLISH) FOR TNPA 65 A. MCT-2651/1 Specification PLATE IDENTIFICATION (ENGLISH) FOR TNPA 65 A. MCT-2651/1 Drawing no. MCT-2651/1 Manufacturing Technology Testing / Inspection Facility	74	5000 Number
PLATE IDENTIFICATION HINDI FOR TNPA 65 A MCT 2652 1 Description "PLATE IDENTIFICATION -HINDI FOR TNPA 65 A. MCT-2652/1 Specification "PLATE IDENTIFICATION -HINDI FOR TNPA 65 A. MCT-2652/1 Drawing no. MCT-2652/1 Manufacturing Technology Testing / Inspection Facility	74	5000 Number

22642

OFAJ/MNF/KMB-AN32/OCT-18

Ordnance Factory Ambajhari

The Sr.General Manager,
Ambajhari
Ambajhari
Maharashtra
440021

Name	Code	Quantity
Cumite Brown AP Type Grit 24 Description Cumite Brown AP Type Grit-24 Specification Cumite Brown AP Type Grit-24 Drawing no. NA Manufacturing Technology As per attachment Manufacturing_facilities_and_testing_facilities.pdf Testing / Inspection Facility As per attachment	00	AS PER REQUIREMENT Kilogram
EPOXY BASED ZINC DUST PRIMER PAINT TO SPECN NO DGS 175 IN GREY SHADE Description EPOXY BASED ZINC DUST PRIMER PAINT TO SPECN. NO.DGS-175,IN GREY SHADE. Specification EPOXY BASED ZINC DUST PRIMER PAINT TO SPECN. NO.DGS-175,IN GREY SHADE. Drawing no. Drg_Cat_1189_Eccentric_Bolt.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Kilogram
BOLT ECCENTRIC ASSY CAT PART NO 14 5306 003416 TO CQA EE DRG CAT NO 1189K DT 9 4 90 Description BOLT,ECCENTRIC ASSY CAT PART NO.14/5306-003416 TO CQA(EE) DRG.CAT.NO.1189K DT.9/4/90 . Specification BOLT,ECCENTRIC ASSY CAT PART NO.14/5306-003416 TO CQA(EE) DRG.CAT.NO.1189K DT.9/4/90 . Drawing no. Drg_Cat_1189_Eccentric_Bolt.pdf Manufacturing Technology Please refer attachment. Manufacturing_and_testingfacility.docx Testing / Inspection Facility Please refer attachment.	00	AS PER REQUIREMENT Number
ALUMINIUM ALLOY AL ZN 4 5 MG 1 F 35 DIN 1725 1 SPECN EXTRUDED HOLLOW PROFILE IN THE LENGTH OF 1500 PLUS 5 MM FOR RG AS PER DRG NO IMPD 1000 AND SCOPE OF SUPPLY AS PER ANNEXURE C Description ALUMINIUM ALLOY AL ZN4,5 MG 1 F 35 DIN 1725/1 SPECN.EXTRUDEDHOLLOW PROFILE IN THE LENGTH OF 1500 + 5 MM FOR RG AS PER DRG.NO. IMPD-1000 & SCOPE OF SUPPLY AS PER ANNEXURE "C". Specification ALUMINIUM ALLOY AL ZN4,5 MG 1 F 35 DIN 1725/1 SPECN.EXTRUDEDHOLLOW PROFILE IN THE LENGTH OF 1500 + 5 MM FOR RG AS PER DRG.NO. IMPD-1000 & SCOPE OF SUPPLY AS PER ANNEXURE "C". Drawing no. Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Kilogram
ALUMINIUM ALLOY AL ZN 4 5 MG 1F 35 DIN 1725 1 SPECN EXTRUDED HOLLOW PROFILE IN LENGTH OF 4850 20MM FOR KERB AS PER DRG NO VLW 31416 AND SCOPE OF SUPPLY AS PER ANNEXURE B Description ALUMINIUM ALLOY AL ZN 4, 5 MG 1F 35 DIN 1725/1 SPECN.EXTRUDED HOLLOW PROFILE IN LENGTH OF 4850 +20MM FOR KERB AS PER DRG.NO.VLW 31416 & SCOPE OF SUPPLY AS PER ANNEXURE 'B'" Specification ALUMINIUM ALLOY AL ZN 4, 5 MG 1F 35 DIN 1725/1 SPECN.EXTRUDED HOLLOW PROFILE IN LENGTH OF 4850 +20MM FOR KERB AS PER DRG.NO.VLW 31416 & SCOPE OF SUPPLY AS PER ANNEXURE 'B'" Annexure_B.pdf Drawing no. DRG.NO.VLW 31416 Drg_No_VLW_31416.pdf Manufacturing Technology Please refer attachment PQC.pdf Testing / Inspection Facility Please refer attachment	00	AS PER REQUIREMENT Number
ALUMINIUM ALLOY AL ZN 4 5 MG 1F 35 DIN 1725 1 SPECN EXTRUDED HOLLOW PROFILE INTHE LENGTH OF 4850 20MM FOR MG AS PER DRG NO IM0584 AND SCOPE OF SUPPLY AS PER ANNEXURE A Description ALUMINIUM ALLOY AL ZN 4, 5 MG 1F 35 DIN 1725/1 SPECN.EXTRUDED HOLLOW PROFILE INTHE LENGTH OF 4850 +20MM FOR MG AS PER DRG.NO.IM0584 & SCOPE OF SUPPLY AS PER ANNEXURE 'A'". Specification ALUMINIUM ALLOY AL ZN 4, 5 MG 1F 35 DIN 1725/1 SPECN.EXTRUDED HOLLOW PROFILE INTHE LENGTH OF 4850 +20MM FOR MG AS PER DRG.NO.IM0584 & SCOPE OF SUPPLY AS PER ANNEXURE 'A'". Drawing no. Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Kilogram
AXLE GUARD CAT 1326 GUARD AXLE TO DRG NO IMPD 0992 Description AXLE GUARD CAT-1326 (GUARD AXLE) TO DRG. NO. IMPD 0992 Specification AXLE GUARD CAT-1326 (GUARD AXLE) TO DRG. NO. IMPD 0992 Drawing no. Drg_No_IMPD_0992_Axle_Guard.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
NEATLY DIE FORGED W SHAPE STEEL FORGING TO CAT NO 1294 A HAVING PROPERTIES UTS 37 KG PER MM SQ MIN YIELD STRENGTH 24 KG F PER MM SQ MIN PERCENT ELONGATION 25 PERCENT ON GAUGE LENGTH 5 POINT 65 UNDER ROOT AREA Description NEATLY DIE FORGED W SHAPE STEEL FORGING TO CAT NO.1294/A HAVING PROPERTIES UTS 37 KG/MM SQ.(MIN). YIELD STRENGTH 24 KG F/MM SQ.(MIN.)% ELONGATION 25 % ON GAUGE LENGTH 5.65 UNDER ROOT AREA. Specification NEATLY DIE FORGED W SHAPE STEEL FORGING TO CAT NO.1294/A HAVING PROPERTIES UTS 37 KG/MM SQ.(MIN). YIELD STRENGTH 24 KG F/MM SQ.(MIN.)% ELONGATION 25 % ON GAUGE LENGTH 5.65 UNDER ROOT AREA. Drawing no. Neatly_Die_Forged_W_shape_to_Cat_No_1294A.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
AL ALLOY WELDING WIRE GRILUMIN S MG 45 SIZE 1 POINT 6 MM DIA TO DIN SPECN 1732 SG AL MG 4 POINT 5 MN ZR 3 POINT 3546 Description AL.ALLOY WELDING WIRE GRILUMIN S-MG-45.SIZE:-1.6 MM DIA.TO DIN SPECN.-1732. SG-AL MG 4.5 MN ZR/3.3546. Specification AL.ALLOY WELDING WIRE GRILUMIN S-MG-45.SIZE:-1.6 MM DIA.TO DIN SPECN.-1732. SG-AL MG 4.5 MN ZR/3.3546. Drawing no. Manufacturing Technology As per attachment Manufacturing_and_testingfacility.pdf Testing / Inspection Facility As per attachment	00	AS PER REQUIREMENT Kilogram
DUBO RETAINING RING FORM 303 CAT 1439 RING RETAINING NYLON 8 POINT 1 ID X 14 OD X 3 POINT 3 MM THICK TO DRG NO IMPD 0998 Description DUBO RETAINING RING FORM 303 CAT-1439 (RING RETAINING NYLON 8.1 ID X 14 OD X 3.3MM THICK) TO DRG. NO. IMPD 0998. Specification DUBO RETAINING RING FORM 303 CAT-1439 (RING RETAINING NYLON 8.1 ID X 14 OD X 3.3MM THICK) TO DRG. NO. IMPD 0998. Drawing no. DUBO_RETAINING_RING_FORM_303.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
PIN FOR LOCKING CAT 1101 BOLT CSK M10 X 35 TO DRG NO IMPD 0983 Description PIN FOR LOCKING CAT -1101(BOLT CSK M10 X 35) TO DRG. NO.IMPD 0983. Specification PIN FOR LOCKING CAT -1101(BOLT CSK M10 X 35) TO DRG. NO.IMPD 0983. Drawing no. Pin_for_Locking_to_Drg_No_IMPD_0983.pdf Manufacturing Technology Please refer attachment. Manufacturing_and_testingfacility.docx Testing / Inspection Facility please refer attachment	00	AS PER REQUIREMENT Number

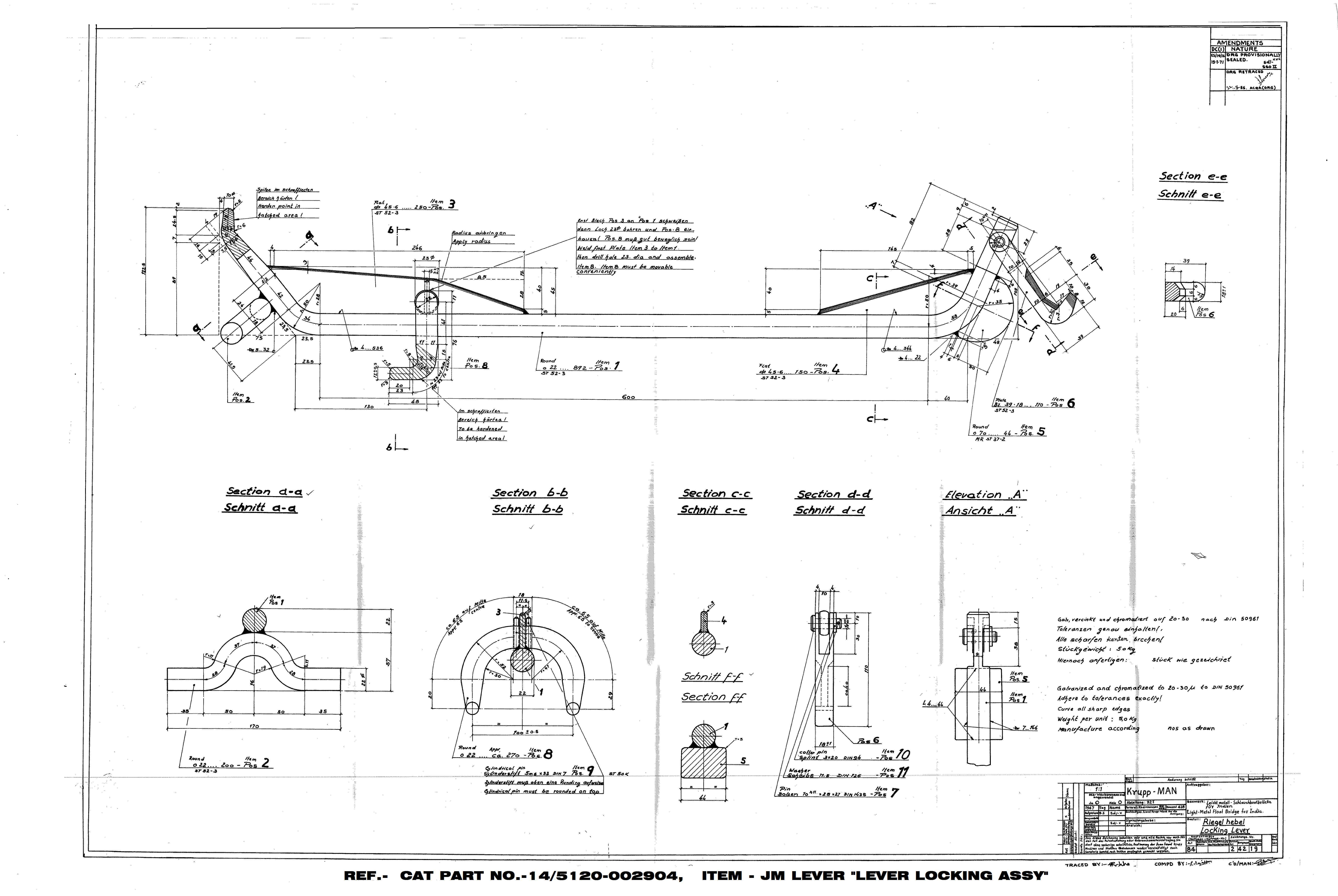

LOCKING LEVER JM LEVER CAT NO14 5120 002904 TO DRG NO 24219 Description LOCKING LEVER (JM LEVER) CAT. NO.14/5120-002904 TO DRG NO 24219 Specification LOCKING LEVER (JM LEVER) CAT. NO.14/5120-002904 TO DRG NO 24219 Drawing no. LOCKING_LEVER.jpg Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
STRAP CAT 1150 TO DRG NO IMPD 0981 Description STRAP(CAT-1150) TO DRG.NO.IMPD 0981 Specification STRAP(CAT-1150) TO DRG.NO.IMPD 0981 Drawing no. .IMPD 0981 Drg_IMPD_0981_Strap_CAT_1150.pdf Manufacturing Technology Please refer attachment Manufacturing_and_testingfacility.pdf Testing / Inspection Facility Please refer attachment	00	AS PER REQUIREMENT Number
WASHER 13 DIA FOR SR NO 1 TO DRG NO IMPD 0991 Description WASHER 13 DIA. FOR SR. NO. 1 TO DRG. NO. IMPD 0991. Specification WASHER 13 DIA. FOR SR. NO. 1 TO DRG. NO. IMPD 0991. Drawing no. IMPD_0991_Washer.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number

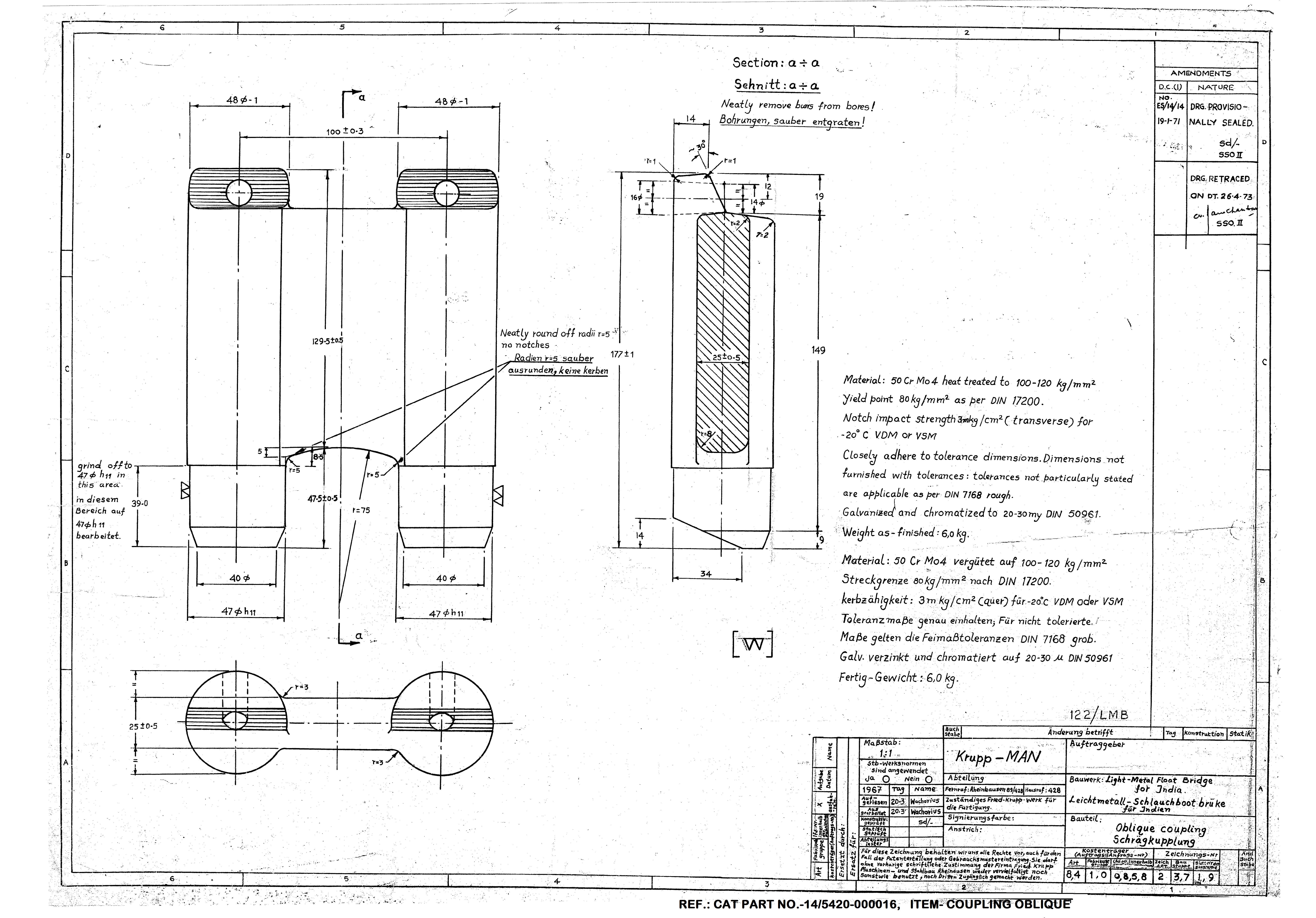

OBLIQUE COUPLING CAT NO 14 5420 000016 TO DRG NO 23719 Description OBLIQUE COUPLING CAT.NO.14/5420-000016 TO DRG NO 23719 Specification OBLIQUE COUPLING CAT.NO.14/5420-000016 TO DRG NO 23719 Drawing no. OBLIQUE_COUPLING_Drg_No_23719.jpg Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
PIN DIAMETER 20 C11 CAT 1153 PIN DIA 20 X 220 MM LENGTH TO DRG NO IMPD 0985 Description PIN DIAMETER 20 C11 CAT-1153(PIN DIA. 20 X 220 MM LENGTH) TO DRG. NO. IMPD 0985. Specification PIN DIAMETER 20 C11 CAT-1153(PIN DIA. 20 X 220 MM LENGTH) TO DRG. NO. IMPD 0985. Drawing no. Pin_Diameter_20_to_Drg_No_IMPD_0985.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
HALF ROUND HD SCREW M S CD PLATED FOR TNP 65A Description HALF ROUND HD.SCREW M2.5X8,M.S CD PLATED FOR TNP-65A. Specification HALF ROUND HD.SCREW M2.5X8,M.S CD PLATED FOR TNP-65A. Drawing no. MCT-3012.jpg Manufacturing Technology Testing / Inspection Facility	17	500 Number

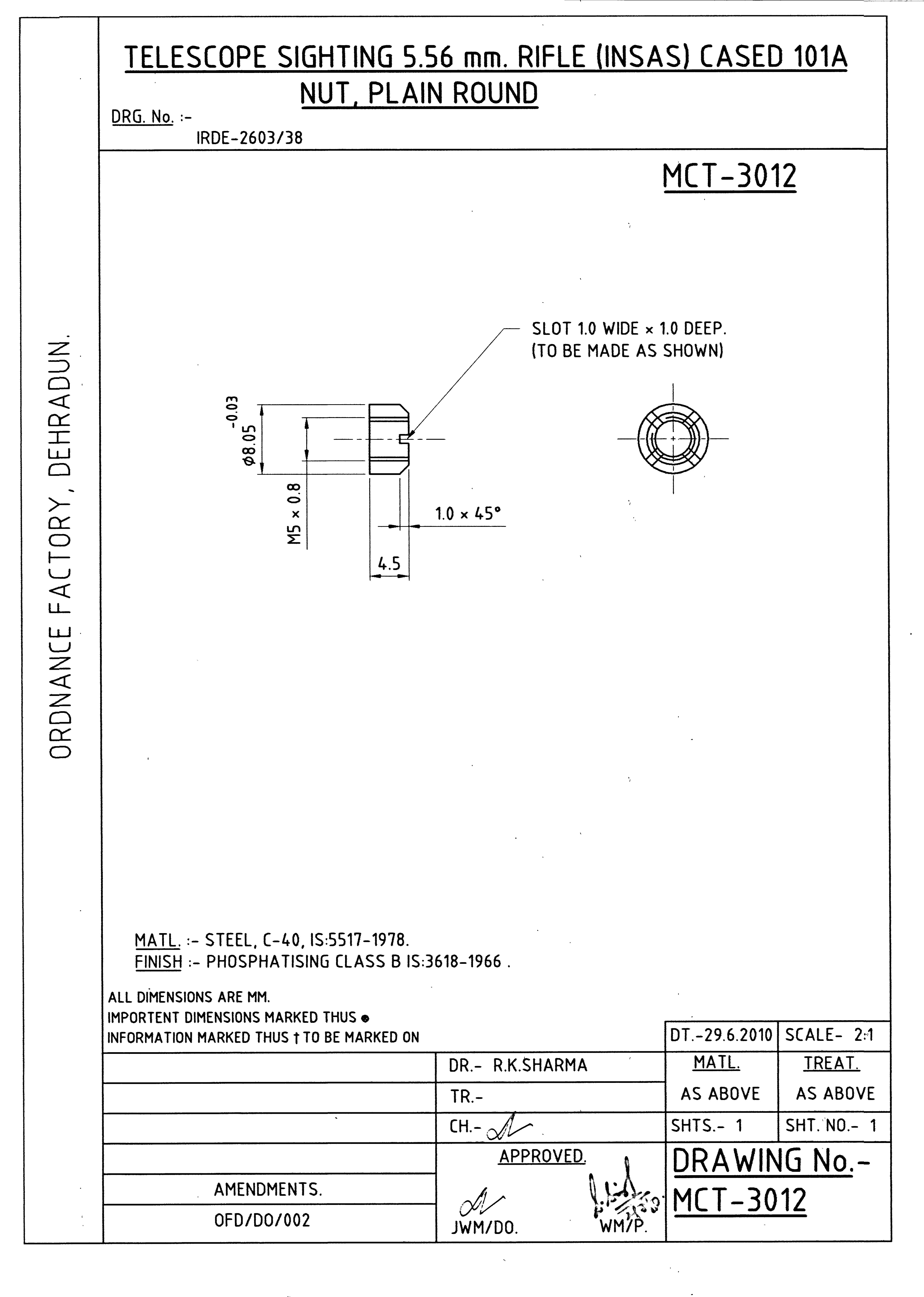

NUT PLAIN ROUND AS PER DRG NO MCT 3012 Description NUT,PLAIN ROUND AS PER DRG.NO. MCT-3012. Specification NUT,PLAIN ROUND AS PER DRG.NO. MCT-3012. Drawing no. MCT-3012. Manufacturing Technology Testing / Inspection Facility	74	500 Number
RING RETAINING OPTICAL ELEMENT TO DRG NO IRDE 2605 43 Description RING RETAINING, OPTICAL ELEMENT TO DRG.NO.IRDE-2605/43. Specification RING RETAINING, OPTICAL ELEMENT TO DRG.NO.IRDE-2605/43. Drawing no. IRDE-2605/43. Manufacturing Technology Testing / Inspection Facility	74	500 Number
ADAPTER FLANGED EYE SHIELD AS PER DRG NO IRDE 2605 30 Description ADAPTER FLANGED (EYE SHIELD) AS PER DRG.NO. IRDE-2605/30. Specification ADAPTER FLANGED (EYE SHIELD) AS PER DRG.NO. IRDE-2605/30. Drawing no. IRDE-2605/30. Manufacturing Technology Testing / Inspection Facility	74	500 Number
CELL OPTICAL INSTRUMENTS ERECTOR AS PER DRG NO IRDE 2605 9 Description CELL OPTICAL INSTRUMENTS (ERECTOR) AS PER DRG.NO. IRDE-2605/9. Specification CELL OPTICAL INSTRUMENTS (ERECTOR) AS PER DRG.NO. IRDE-2605/9. Drawing no. IRDE-2605/9. Manufacturing Technology Testing / Inspection Facility	74	500 Number
SPACER OPTICAL ELEMENT TO DRG NO IRDE 2605 5 Description SPACER, OPTICAL ELEMENT TO DRG.NO. IRDE-2605/5. Specification SPACER, OPTICAL ELEMENT TO DRG.NO. IRDE-2605/5. Drawing no. IRDE-2605/5. Manufacturing Technology Testing / Inspection Facility	74	500 Number
RING SPECIAL AS PER DRG NO IRDE 2605 13 Description RING SPECIAL AS PER DRG.NO. IRDE-2605/13 Specification RING SPECIAL AS PER DRG.NO. IRDE-2605/13 Drawing no. IRDE-2605/13 Manufacturing Technology Testing / Inspection Facility	74	500 Number
RING EXTERNALLY THREADED AS PER DRG NO IRDE 2605 28 Description RING,EXTERNALLY THREADED AS PER DRG.NO.IRDE-2605/28. Specification RING,EXTERNALLY THREADED AS PER DRG.NO.IRDE-2605/28. Drawing no. DRG.NO.IRDE-2605/28. IRDE_2605-28_RING_EXT_THREADED.pdf Manufacturing Technology Testing / Inspection Facility	74	500 Number
RING RETAINING OPTICAL ELEMENT TO DRG NO IRDE 2605 18 Description RING RETAINING, OPTICAL ELEMENT TO DRG.NO. IRDE-2605/18. Specification RING RETAINING, OPTICAL ELEMENT TO DRG.NO. IRDE-2605/18. Drawing no. DRG.NO. IRDE-2605/18. Manufacturing Technology Testing / Inspection Facility	74	500 Number
CLAMP FINISH TO DRG NO MCT 2103 Description CLAMP(FINISH) TO DRG NO. MCT-2103 Specification CLAMP(FINISH) TO DRG NO. MCT-2103 Drawing no. MCT-2103 Manufacturing Technology Testing / Inspection Facility	74	500 Number

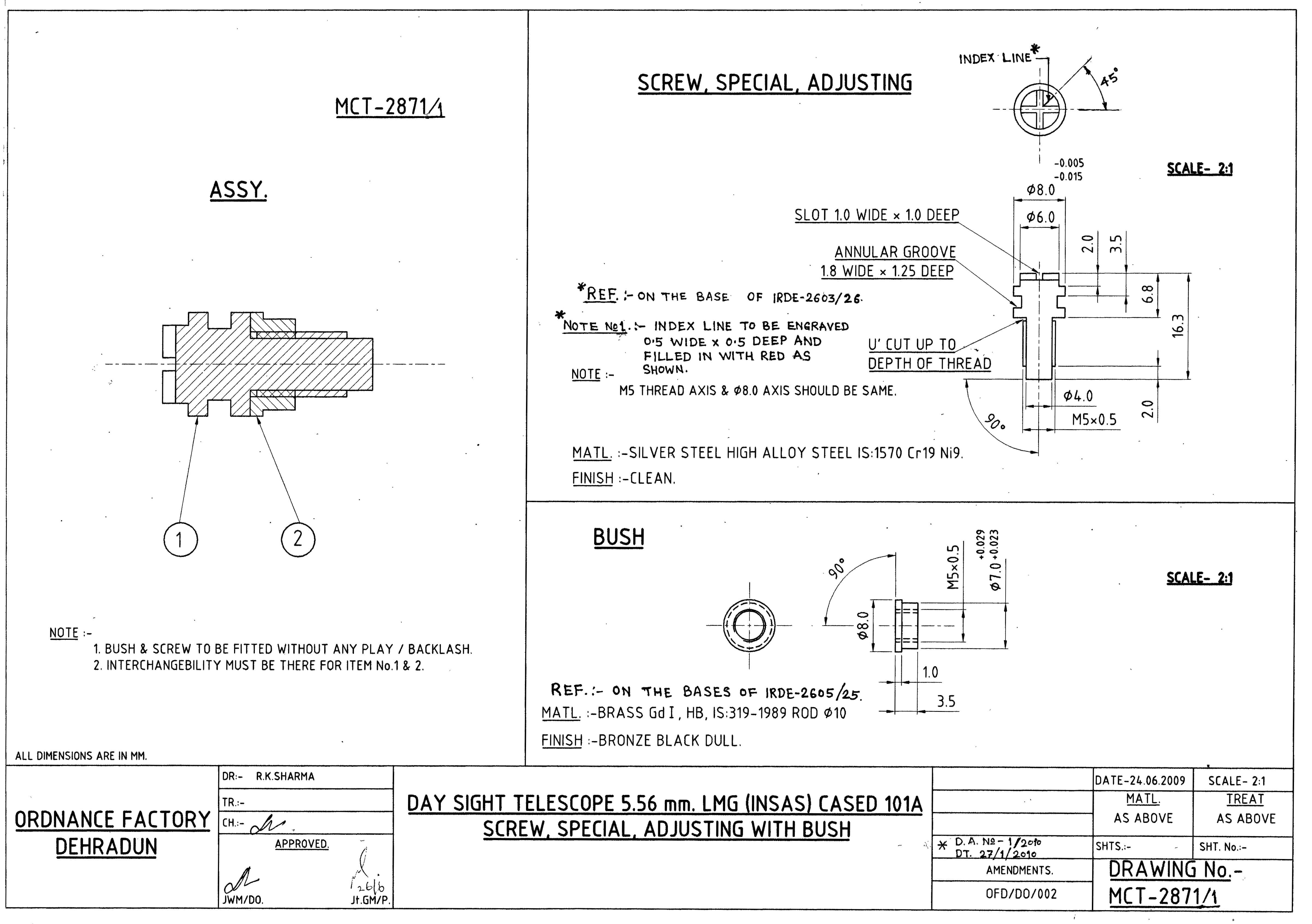

SCREW SPECIAL ADJUSTING WITH BUSH TO DRG NO MCT2871 1 Description SCREW,SPECIAL,ADJUSTING WITH BUSH TO DRG.NO. MCT-2871/1.FOR DAY SIGHT TELE.5.56MM LMG(INSAS) CASED 101A , Specification SCREW,SPECIAL,ADJUSTING WITH BUSH TO DRG.NO. MCT-2871/1.FOR DAY SIGHT TELE.5.56MM LMG(INSAS) CASED 101A , Drawing no. DRG.NO. MCT-2871/1 MCT-2871-1.jpg Manufacturing Technology Testing / Inspection Facility	74	500 Number
SPRING HELICAL TO DRG NO MCT 1336 3 Description SPRING HELICAL TO DRG NO. MCT-1336/3 Specification SPRING HELICAL TO DRG NO. MCT-1336/3 Drawing no. MCT-1336/3 Manufacturing Technology Testing / Inspection Facility	74	5000 Number
CELL RETICLE DRG NO IRDE 2605 16 Description CELL RETICLE DRG.NO.:IRDE-2605/16 Specification CELL RETICLE DRG.NO.:IRDE-2605/16 Drawing no. DRG.NO.:IRDE-2605/16 Manufacturing Technology Testing / Inspection Facility	74	500 Number
HELICAL INSERT M4X7 DEEP MAKE NAG FASTMAN Description HELICAL INSERT M4X7 DEEP. MAKE NAG FASTMAN Specification HELICAL INSERT M4X7 DEEP. MAKE NAG FASTMAN Drawing no. Manufacturing Technology Testing / Inspection Facility	17	5000 Number
CARRYING HANDLE CAT NO 14 5120 002902 TO DRG NO 23902 Description CARRYING HANDLE CAT.NO.14/5120-002902 TO DRG NO 23902 Specification CARRYING HANDLE CAT.NO.14/5120-002902 TO DRG NO 23902 Drawing no. Carrying_handle_to_Drg_No_23902.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
PIN FOR LOCKING CAT 1102 PIN LOCK SETTING TO DRG NO IMPD 0984 Description PIN FOR LOCKING CAT-1102(PIN LOCK SETTING) TO DRG. NO. IMPD 0984. Specification PIN FOR LOCKING CAT-1102(PIN LOCK SETTING) TO DRG. NO. IMPD 0984. Drawing no. PIN_FOR_LOCKING_CAT_1102.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
STEEL ROUND DISC OF SIZE 190 MM DIA X 15 MM THICKNESS HAVING PROPERTIES UTS 52 KG PER MM SQ MIN YIELD STRGTH 36 KG F PER MM PER SQ MIN PERCENT ELONGATION 22 PERCENT ON GAUGE LENGTH 5 POINT 65 SQUARE ROOT AREA Description STEEL ROUND DISC OF SIZE:- 190 MM DIA X 15 MM THICKNESS HAVING PROPERTIES UTS 52 KG/MM/SQ.(MIN). YIELD STRGTH 36 KG F /MM /SQ.(MIN)% ELONGATION 22 % ON GAUGE LENGTH 5.65 SQUARE ROOT AREA. Specification STEEL ROUND DISC OF SIZE:- 190 MM DIA X 15 MM THICKNESS HAVING PROPERTIES UTS 52 KG/MM/SQ.(MIN). YIELD STRGTH 36 KG F /MM /SQ.(MIN)% ELONGATION 22 % ON GAUGE LENGTH 5.65 SQUARE ROOT AREA. Drawing no. Manufacturing Technology As per attachment Manufacturing_and_testingfacility.pdf Testing / Inspection Facility As per attachment	00	AS PER REQUIREMENT Kilogram
CUP SPRING CAT NO 1133 A Description CUP SPRING CAT NO. 1133 A. Specification CUP SPRING CAT NO. 1133 A. Drawing no. CUP_SPRING.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
CYLINDRICAL PIN 8 M6 X 32 DIN 7 TO DRG NO ISK 0459 Description CYLINDRICAL PIN 8 M6 X 32 DIN-7 TO DRG. NO. ISK-0459. Specification CYLINDRICAL PIN 8 M6 X 32 DIN-7 TO DRG. NO. ISK-0459. Drawing no. ISK_0459_Cylindrical_Pin.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
CONE HANDLE CAT PART NO 14 5340 001021 TO DRG NO ISK 0439 Description CONE HANDLE CAT.PART NO.14/5340-001021 TO DREG.NO.ISK-0439. Specification CONE HANDLE CAT.PART NO.14/5340-001021 TO DREG.NO.ISK-0439. Drawing no. ISK-0439. Drg_ISK_0439_Handle.pdf Manufacturing Technology please refer attachment Manufacturing_and_testingfacility.pdf Testing / Inspection Facility please refer attachment	00	AS PER REQUIREMENT Number
STEEL PLATE TO FB 70 OR ALTERNATIVE MATERIAL MN V STEEL UTS 590 MPA MIN YIELD STRESS 440 MPA MIN SIZE 2970 X 1175 X 11 MM OR 660 X 3525 X 11 MM OR 660 X 2350 X 11 MM ROLLING DIRECTION ALONG 2970 MM OR 660 MM DIMENSION IN LENGTH Description STEEL PLATE TO FB-70 OR ALTERNATIVE MATERIAL:MN-V- STEEL UTS 590 MPA(MIN), YIELD STRESS 440 MPA (MIN) SIZE :2970 X 1175 X 11MM OR 660 X 3525 X 11MM)OR 660 X 2350 X 11MM. ROLLING DIRECTION ALONG 2970MM OR 660MM DIMENSION IN LENGTH. Specification STEEL PLATE TO FB-70 OR ALTERNATIVE MATERIAL:MN-V- STEEL UTS 590 MPA(MIN), YIELD STRESS 440 MPA (MIN) SIZE :2970 X 1175 X 11MM OR 660 X 3525 X 11MM)OR 660 X 2350 X 11MM. ROLLING DIRECTION ALONG 2970MM OR 660MM DIMENSION IN LENGTH. Drawing no. Manufacturing Technology Please refer attachment. Manufacturing_and_testingfacility.docx Testing / Inspection Facility Please refer attachment.	00	AS PER REQUIREMENT Kilogram
LOCK NUT M 16 TO DIN 7967 DULY GALV AND CHROM Description LOCK NUT M-16 TO DIN 7967 DULY GALV. & CHROM. Specification LOCK NUT M-16 TO DIN 7967 DULY GALV. & CHROM. Drawing no. Lock_Nut_to_Drg_No_IMPD_0996.pdf Manufacturing Technology Please refer attachment. Manufacturing_and_testingfacility.docx Testing / Inspection Facility please refer attachment	00	AS PER REQUIREMENT Number
ECENTRIC BOLT TO CQA EE DRG NO CAT NO 1403 C DC NO ES 14 224 DT 3 10 84 Description ECENTRIC BOLT TO CQA(EE)DRG.NO.CAT NO.1403/C .DC.NO.ES/14/224 DT.3.10.84. Specification ECENTRIC BOLT TO CQA(EE)DRG.NO.CAT NO.1403/C .DC.NO.ES/14/224 DT.3.10.84. Drawing no. Eccentric_Bolt_CAT_No_1403C.pdf Manufacturing Technology Please refer attachment. Manufacturing_and_testingfacility.docx Testing / Inspection Facility Please refer attachment.	00	AS PER REQUIREMENT Number
CSK BOLT TO CQA EE DRG NO CAT NO 1182C DC NO ES 14 298 DT 20 1 94 Description CSK BOLT TO CQA(EE)DRG.NO.CAT NO.1182C .DC.NO.ES/14/298 DT.20.1.94. Specification CSK BOLT TO CQA(EE)DRG.NO.CAT NO.1182C .DC.NO.ES/14/298 DT.20.1.94. Drawing no. Drg_1182C.pdf Manufacturing Technology Please refer attachment. Manufacturing_and_testingfacility.docx Testing / Inspection Facility Please refer attachment.	00	AS PER REQUIREMENT Number
SCREW GRUB SLOTTED C TYPE FINISH CAD PLATING IS 2388 STEEL Description SCREW GRUB SLOTTED C TYPE M 2.5X6 MM FINISH: CAD.PLATING, IS:2388, STEEL Specification SCREW GRUB SLOTTED C TYPE M 2.5X6 MM FINISH: CAD.PLATING, IS:2388, STEEL Drawing no. Manufacturing Technology Testing / Inspection Facility	17	5000 Number
SCREW GRUB SLOTTED CONICAL END STEEL WITH CADMIUM PLATING SIZE M2X2 DIN 553 AS PER IS 2388 Description SCREW GRUB SLOTTED CONICAL END STEEL WITH CADMIUM PLATING SIZE M2X2,(DIN-553) AS PER IS-2388. Specification SCREW GRUB SLOTTED CONICAL END STEEL WITH CADMIUM PLATING SIZE M2X2,(DIN-553) AS PER IS-2388. Drawing no. Manufacturing Technology Testing / Inspection Facility	17	5000 Number
SCREW METRIC SLOTTED CH HD WITH BLACK BRONZING IS 1366 BRASS Description SCREW METRIC SLOTTED CH. HD.M2.5X8 LONG WITH BLACK BRONZING IS 1366 BRASS Specification SCREW METRIC SLOTTED CH. HD.M2.5X8 LONG WITH BLACK BRONZING IS 1366 BRASS Drawing no. Manufacturing Technology Testing / Inspection Facility	17	5000 Number
SCREW M2X4 SLOTTED HEAD CONICAL END GRUB SCREW STEEL AS PER IS 2388 WITH CADMIUM PLATING Description SCREW M2X4 SLOTTED HEAD CONICAL END GRUB SCREW STEEL AS PER IS-2388 WITH CADMIUM PLATING Specification SCREW M2X4 SLOTTED HEAD CONICAL END GRUB SCREW STEEL AS PER IS-2388 WITH CADMIUM PLATING Drawing no. Manufacturing Technology Testing / Inspection Facility	17	5000 Number
SCREW GRUB SLOTTED CONICAL END STEEL WITH CADMIUM PLATING IS 2388 MAKE LPS Description SCREW GRUB SLOTTED CONICAL END M2X2.5 LONG STEEL WITH CADMIUM PLATING IS-2388 MAKE-LPS Specification SCREW GRUB SLOTTED CONICAL END M2X2.5 LONG STEEL WITH CADMIUM PLATING IS-2388 MAKE-LPS Drawing no. Manufacturing Technology Testing / Inspection Facility	17	10000 Number
C SK BOLT M 16 X 65 WITH NUT CAT NO 1194 DULY GALV AND CHROM Description C,SK BOLT M-16 X 65 WITH NUT CAT NO 1194 DULY GALV.& CHROM. Specification C,SK BOLT M-16 X 65 WITH NUT CAT NO 1194 DULY GALV.& CHROM. Drawing no. Cat_1194_C_Sunk_Bolt.pdf Manufacturing Technology Please refer attachment Manufacturing_and_testingfacility.docx Testing / Inspection Facility Please refer attachment	00	AS PER REQUIREMENT Number
C SK BOLT M 16 X 55 WITH NUT TO CQA EE DRG CAT NO 1181C DC ES 14 298 DT 20 1 94 Description C,SK.BOLT M-16 X 55 WITH NUT TO CQA(EE)DRG.CAT.NO.1181C DC.ES/14/298 DT.20.1.94 Specification C,SK.BOLT M-16 X 55 WITH NUT TO CQA(EE)DRG.CAT.NO.1181C DC.ES/14/298 DT.20.1.94 Drawing no. Drg_ISK_0349_and_drg_1181_Bolt.pdf Manufacturing Technology Please refer attachment Manufacturing_and_testingfacility.docx Testing / Inspection Facility Please refer attachment	00	AS PER REQUIREMENT Number
ADAPTER SLEEVE 8 X 45 ADAPTER DIA 8 X 45MM LONG TO DRG NO IMPD 0982 Description ADAPTER SLEEVE 8X45(ADAPTER DIA.8 X 45MM LONG) TO DRG. NO.IMPD 0982. Specification ADAPTER SLEEVE 8X45(ADAPTER DIA.8 X 45MM LONG) TO DRG. NO.IMPD 0982. Drawing no. Drg_No_IMPD_0982.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
SPLIT COTTER PIN DIAMETER 5 OF SR NO 2 TO DRG NO IMPD 0986 Description SPLIT COTTER PIN DIAMETER 5 OF SR. NO.2 TO DRG. NO.IMPD 0986. Specification SPLIT COTTER PIN DIAMETER 5 OF SR. NO.2 TO DRG. NO.IMPD 0986. Drawing no. IMPD_0986_Clotter_Pin.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
SPLIT COTTER PIN DIA 4 X 20 COTTER SPLIT PIN MILD STEEL DIA 4 X 20 MM LONG TO DRG NO IMPD 0990 Description SPLIT COTTER PIN DIA. 4 X 20 (COTTER SPLIT PIN MILD STEEL DIA.4 X 20 MM LONG) TO DRG. NO. IMPD 0990. Specification SPLIT COTTER PIN DIA. 4 X 20 (COTTER SPLIT PIN MILD STEEL DIA.4 X 20 MM LONG) TO DRG. NO. IMPD 0990. Drawing no. IMPD_0990_Split_Pin.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
JOINT BAND TO DRG NO CAT NO 1192A Description JOINT BAND TO DRG.NO.CAT.NO.1192A Specification JOINT BAND TO DRG.NO.CAT.NO.1192A PQ_JOINT_BAND.pdf Drawing no. Drg_Cat_1192_A_Joint_Band.pdf Manufacturing Technology PLEASE REFER ATTACHMENT JOINT_BAND_PQ.pdf Testing / Inspection Facility PLEASE REFER ATTACHMENT	00	AS PER REQUIREMENT Number
JOINT BAND TO DRG NO CAT NO 1371A Description JOINT BAND TO DRG NO.CAT NO.1371A Specification JOINT BAND TO DRG NO.CAT NO.1371A PQ_JOINT_BAND.pdf Drawing no. Drg_Cat_1371_A_Joint_Band.pdf Manufacturing Technology PLEASE REFER ATTACHMENT JOINT_BAND_PQ.pdf Testing / Inspection Facility PLEASE REFER ATTACHMENT	00	AS PER REQUIREMENT Number
PIN DIAMETER 12 CAT 1256 PIN DIA 12 X 75MM LONG TO DRG NO IMPD0989 Description PIN DIAMETER 12 CAT-1256(PIN DIA 12 X 75MM LONG) TO DRG. NO.IMPD0989. Specification PIN DIAMETER 12 CAT-1256(PIN DIA 12 X 75MM LONG) TO DRG. NO.IMPD0989. Drawing no. Pin_Diameter_12_to_Drg_No_IMPD_0989.pdf Manufacturing Technology Please refer attachment. Manufacturing_and_testingfacility.docx Testing / Inspection Facility Please refer attachment.	00	AS PER REQUIREMENT Number
SPECIAL WRENCH CAT NO14 5 120 002903 TO DRG NO 24218 Description SPECIAL WRENCH CAT. NO.14/5120-002903 TO DRG NO 24218. Specification SPECIAL WRENCH CAT. NO.14/5120-002903 TO DRG NO 24218. Drawing no. Drg_24218_special_wrench.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
STEEL ROD OF SIZE 16 MM DIA IN STRAIGHT and MULTIPLE LENGTH OF 1350 MM HAVING PROPERTIES UTS 52 KG per MM SQ MIN YIELD STRENGTH 36 KGF per MM SQ MIN percent ELONGATION 22 percent ON GAUGE LENGTH 5 point 65 SQ ROOT AREA Description STEEL ROD OF SIZE 16 MM DIA IN STRAIGHT & MULTIPLE LENGTH OF 1350 MM HAVING PROPERTIES UTS 52 KG/MM SQ.(MIN)YIELD.STRENGTH 36 KGF/MM SQ. (MIN.)% ELONGATION 22 % ON GAUGE LENGTH 5.65 SQ.ROOT AREA. Specification STEEL ROD OF SIZE 16 MM DIA IN STRAIGHT & MULTIPLE LENGTH OF 1350 MM HAVING PROPERTIES UTS 52 KG/MM SQ.(MIN)YIELD.STRENGTH 36 KGF/MM SQ. (MIN.)% ELONGATION 22 % ON GAUGE LENGTH 5.65 SQ.ROOT AREA. Drawing no. Manufacturing Technology As per attachment Manufacturing_and_testingfacility.pdf Testing / Inspection Facility As per attachment	00	AS PER REQUIREMENT Kilogram
RUBBER HAMMER CAT NO 14 5120 003436 TO DRG NO IM 0218 Description RUBBER HAMMER CAT NO 14 5120 003436 TO DRG NO IM 0218 Specification RUBBER HAMMER CAT NO 14 5120 003436 TO DRG NO IM 0218 Drawing no. IM 0218 Manufacturing Technology Details as per Drawing and PQ Criteria DRG_Rubber_Hammer_-IM0218.pdf Testing / Inspection Facility Details as per Drawing and PQ Criteria	00	AS PER REQUIREMENT Number
ROLLERS LAUNCHING B B PLAIN CAT NO BB 22 TO DRG NO 5098 METRIC Description ROLLERS, LAUNCHING.B.B.PLAIN CAT.NO.BB-22 TO DRG NO.5098 (METRIC)/A. Specification ROLLERS, LAUNCHING.B.B.PLAIN CAT.NO.BB-22 TO DRG NO.5098 (METRIC)/A. Drawing no. Drg_Roller_Launching_BB_Plan_5098_metric.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
ADAPTER BLANK MCT 2878 FOR INDICATER FUZE 105 37 FD Description ADAPTER,BLANK MCT-2878.FOR INDICATER,FUZE,105/37 FD Specification ADAPTER,BLANK MCT-2878.FOR INDICATER,FUZE,105/37 FD Drawing no. MCT-2878 Manufacturing Technology Testing / Inspection Facility	74	500 Number
KNOB TO DRG NO MCT 2710 FOR INDICATOR FUZE 105 37 Description KNOB TO DRG.NO.MCT-2710 FOR INDICATOR FUZE , 105/37. Specification KNOB TO DRG.NO.MCT-2710 FOR INDICATOR FUZE , 105/37. Drawing no. MCT-2710 Manufacturing Technology Testing / Inspection Facility	74	500 Number
SCREW M C SLOTTED CSK HD STEEL IS 1365 M3X20MM LONG FOR INDICATOR FUSE 105 37 FINISH PHOSPHATING Description SCREW M/C SLOTTED CSK HD. STEEL 4.6 ,IS-1365 M3X20MM LONG FOR INDICATOR FUSE 105/37 FINISH: PHOSPHATING. Specification SCREW M/C SLOTTED CSK HD. STEEL 4.6 ,IS-1365 M3X20MM LONG FOR INDICATOR FUSE 105/37 FINISH: PHOSPHATING. Drawing no. Manufacturing Technology Testing / Inspection Facility	17	5000 Number
STEEL PLATE OF SIZE 20 MM THICK X 175 MM WIDE X 900 MM LENGTH HAVING PROPERTIES OF UTS 52 KG per MM SQ MIN YIELD STRENGTH 36 KG F per MM SQ MIN percent ELONGATION 22 percent ON GAUGE LENGTH 5 point 65 SQUARE ROOT AREA Description STEEL PLATE OF SIZE:-20 MM THICK X 175 MM WIDE X 900 MM LENGTH HAVING PROPERTIES OF UTS 52 KG/MM SQ.(MIN). YIELD STRENGTH 36 KG F/MM SQ. (MIN)% ELONGATION 22 % ON GAUGE LENGTH 5.65 SQUARE ROOT AREA Specification STEEL PLATE OF SIZE:-20 MM THICK X 175 MM WIDE X 900 MM LENGTH HAVING PROPERTIES OF UTS 52 KG/MM SQ.(MIN). YIELD STRENGTH 36 KG F/MM SQ. (MIN)% ELONGATION 22 % ON GAUGE LENGTH 5.65 SQUARE ROOT AREA Drawing no. Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Kilogram
STEEL ROUND OF SIZE135 MM HAVING PROPERTIES UTS 52 KG per MM SQ MIN YIELD STRENGTH 36 KGF per MM SQ MIN percent ELONGATION 22 percent ON GAUGE LENGHT 5 point 65 SQ ROOT AREA Description STEEL ROUND OF SIZE:135 MM HAVING PROPERTIES UTS 52 KG/MM SQ (MIN). YIELD STRENGTH.36 KGF/MM SQ.(MIN)%,ELONGATION 22% ON GAUGE LENGHT 5.65 SQ.ROOT AREA Specification STEEL ROUND OF SIZE:135 MM HAVING PROPERTIES UTS 52 KG/MM SQ (MIN). YIELD STRENGTH.36 KGF/MM SQ.(MIN)%,ELONGATION 22% ON GAUGE LENGHT 5.65 SQ.ROOT AREA Drawing no. Manufacturing Technology As per attachment Manufacturing_and_testingfacility.pdf Testing / Inspection Facility As per attachment	00	AS PER REQUIREMENT Kilogram
SPIKE BRIDGING O P PIN TO DRG NO IMPD 0543 Description SPIKE,BRIDGING (O.P.PIN) TO DRG NO IMPD-0543. Specification SPIKE,BRIDGING (O.P.PIN) TO DRG NO IMPD-0543. Drawing no. IMPD_0543_Spikes_Bridging_pdf.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
LOCKING BOLT TO DRG NO CAT 1376 C WITHOUT CUP SPRING Description LOCKING BOLT TO DRG.NO.CAT-1376/C WITHOUT CUP SPRING Specification LOCKING BOLT TO DRG.NO.CAT-1376/C WITHOUT CUP SPRING Drawing no. Cat_1376_C_Locking_Bolt.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
SEAMLESS STEEL TUBE TO SPECN DIN 2391 OF SIZE 134 point 5 MM OD X 9 point 5 MM THICK X 1250 MM LONG STEEL HAVING PROP UTS 52 KGF per MM SQ MIN YIELD STRENGTH 36 KGF per MM SQ MIN percent ELONGATION 22 percent ON GAUGE LENGTH 5 point 65 SQ ROOT AREA Description SEAMLESS STEEL TUBE TO SPECN.DIN 2391 OF SIZE -134.5MM O/D +/-0.15 X9.5MM THICK X1250MM LONG.STEEL HAVING PROPERTIES UTS 52 KGF/MM SQ.(MIN). YIELD STRENGTH 36KGF/MM SQ.(MIN).% ELONGATION 22% ON GAUGE LENGTH 5.65SQ. ROOT AREA. Specification SEAMLESS STEEL TUBE TO SPECN.DIN 2391 OF SIZE -134.5MM O/D +/-0.15 X9.5MM THICK X1250MM LONG.STEEL HAVING PROPERTIES UTS 52 KGF/MM SQ.(MIN). YIELD STRENGTH 36KGF/MM SQ.(MIN).% ELONGATION 22% ON GAUGE LENGTH 5.65SQ. ROOT AREA. Drawing no. Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Kilogram
PIN CAT 1255 PIN 41 774 X 90MM LONG TO DRG NO IMPD0988 Description PIN CAT-1255(PIN 41.774 X 90MM LONG) TO DRG. NO. IMPD0988. Specification PIN CAT-1255(PIN 41.774 X 90MM LONG) TO DRG. NO. IMPD0988. Drawing no. Drg_IMPD_0988_Pin_Cat.pdf Manufacturing Technology Please refer attachment. Manufacturing_and_testingfacility.docx Testing / Inspection Facility Please refer attachment.	00	AS PER REQUIREMENT Number
BAILEY BRIDGE TIMBERS GRILLAGE CAT NO BB 94 TO DRG NO M 6127 E Description BAILEY BRIDGE TIMBERS,GRILLAGE CAT.NO.BB-94 TO DRG NO M-6127/E. Specification BAILEY BRIDGE TIMBERS,GRILLAGE CAT.NO.BB-94 TO DRG NO M-6127/E. Drawing no. BAILEY_BRIDGE_TIMBER_GRILLAGE_Drg_M_6127_E.pdf Manufacturing Technology Testing / Inspection Facility	00	AS PER REQUIREMENT Number
CUP SPRING 30 MM OD X 16 point 3 MM ID X 0 point 7 MM THICK ITEM 13 CAT PART NO 14 5420 001022 TO DRAWING NO CAT 1160 A DC ES 14 224 DT 3 10 84 Description CUP SPRING 30 MM O/D X 16.3 MM I/D X 0.7 MM THICK ITEM 13 CAT PART NO. 14/5420-001022 TO DROWING NO.CAT-1160/A.DC.ES/14/224 DT.3.10.84 . Specification CUP SPRING 30 MM O/D X 16.3 MM I/D X 0.7 MM THICK ITEM 13 CAT PART NO. 14/5420-001022 TO DROWING NO.CAT-1160/A.DC.ES/14/224 DT.3.10.84 . Drawing no. Cat_1160A_Cup_Spring.pdf Manufacturing Technology As per attachment Manufacturing_and_testingfacility.pdf Testing / Inspection Facility As per attachment	00	AS PER REQUIREMENT Number
